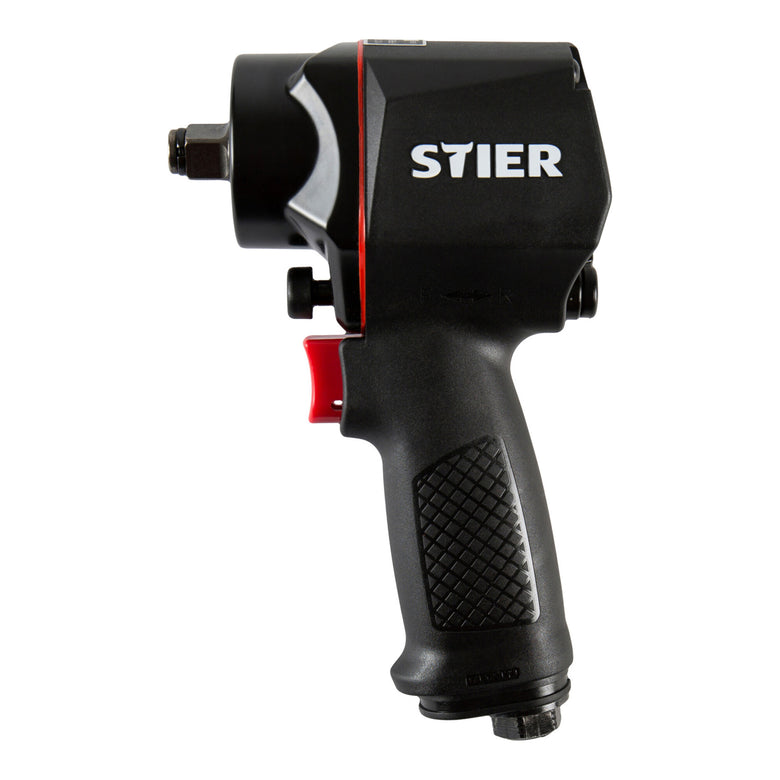

STIER pneumatic impact wrench 14-KBS Extra short 1400 Nm double-hammer impact mechanism








STIER pneumatic impact wrench 14-KBS Extra short 1400 Nm double-hammer impact mechanism
129,90 €
incl. tax109,16 €
excl. taxExpress
Details
The innovative problem solver in the compressed air segment – the STIER impact wrench combines the power of an impact wrench and the ergonomics of a ratchet wrench!
Characteristics:
- Compact, lightweight, powerful pneumatic impact wrench for use in industry and workshops
- Powerful loosening torque of 1,400 Nm combined with compact design and low weight

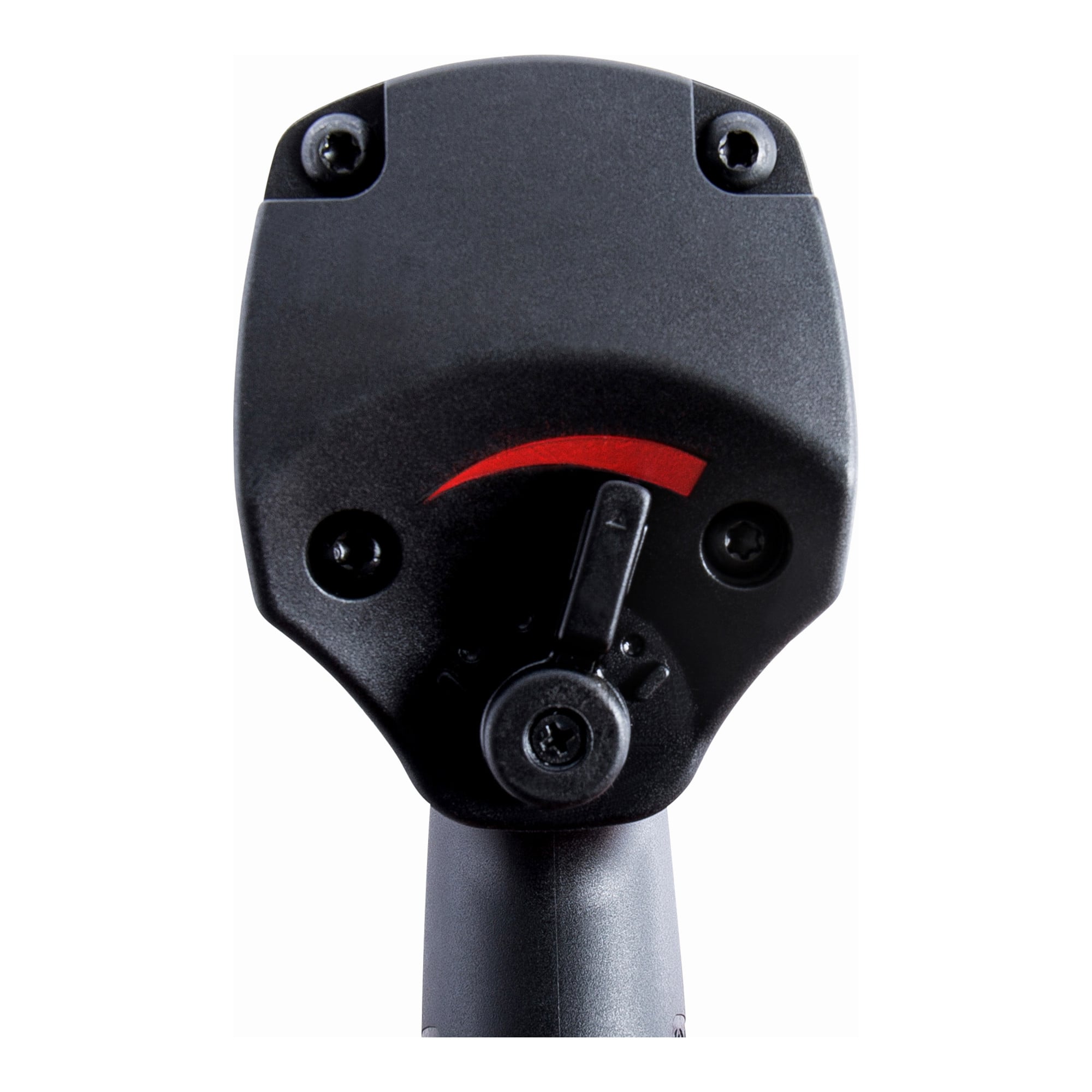

- Easy one-handed operation thanks to the optimally positioned reversing slide for right and left rotation guarantees time-saving work
- Three different speed levels adjustable
- Robust workmanship made of high-quality metal and plastic ensures low vibration during use
- Fatigue-free working due to low weight and high torque
- Cold-insulating handle
- Exhaust air duct through the handle downwards
Application:
- Particularly suitable for car repair shops, tire services, repair shops, assembly shops, metalworking shops
- Advantageous for large, strong and tight screw connections on axles of cars as well as wheels, axles and bodies of vans and trucks
- All STIER compressed air products have the same connection and can be combined with each other
Scope of delivery:
- STIER impact wrench 14-KBS
- Plug nipple 1/4"
If used regularly, add lubricating oil to DL tools daily via the air inlet and 1-2 strokes of gear grease via the air connection below the handle.
STIER products are developed by professionals from trade and industry and combine the highest levels of performance and ergonomics. Powerful. Durable.
Thousands of customers trust the best value for money. Experience the STIER product range on our brand page .
Main features
EAN/GTIN | 4260438995620 |
SKU | 51724767 |
Manufacturer
GPSR Name | STIER Industrial GmbH |
GPSR Address | Friedrichstrasse 224 |
GPSR City | Berlin |
GPSR Country | DE |
GPSR Zip Code | 10969 |
GPSR e-mail | info@stier.de |
Manual
Technical Sheet

Caracteristics | Values |
---|---|

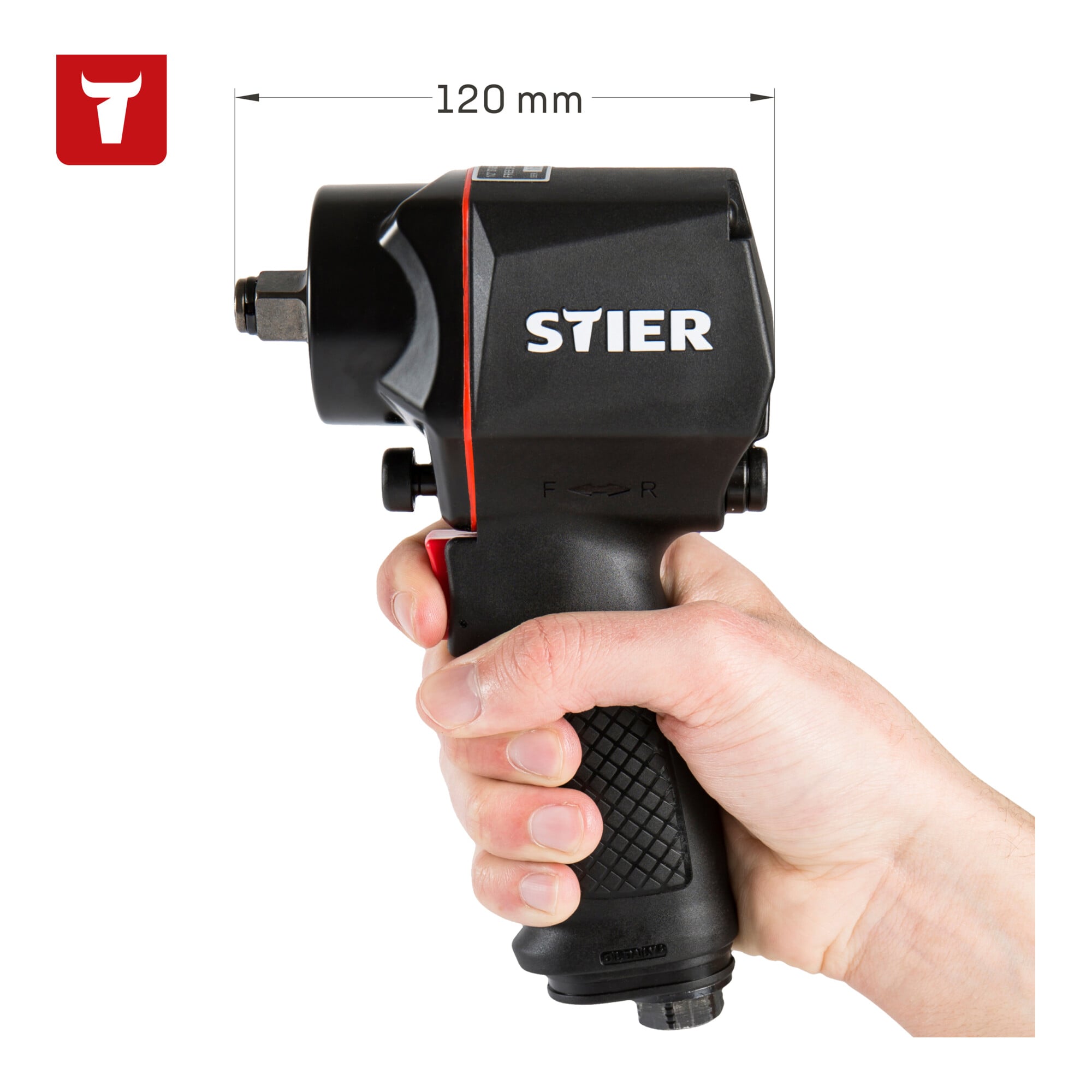

Length | 120 mm |
Speed | 11,000 rpm |
Left rotation | Multi-stage (right |
Impact mechanism | Jumbo hammer impact mechanism |
Air requirement | 2.3 liters |
Weight | 1.21 kg |
Recommended hose diameter | 10 mm |
Release torque | 1,400 Nm |
Maximum torque | 949 Nm |
Working torque | 34 - 475 Nm |
Working pressure (recommended) | 6.3 bar |
Stage 1 (torque) | 163 Nm |
Stage 2 (torque) | 461 Nm |
Stage 3 (torque) | 556 Nm |
Stage 4 (torque) | 583 Nm |
Drive | 1 |
Air connection | 01.04.2021 |
