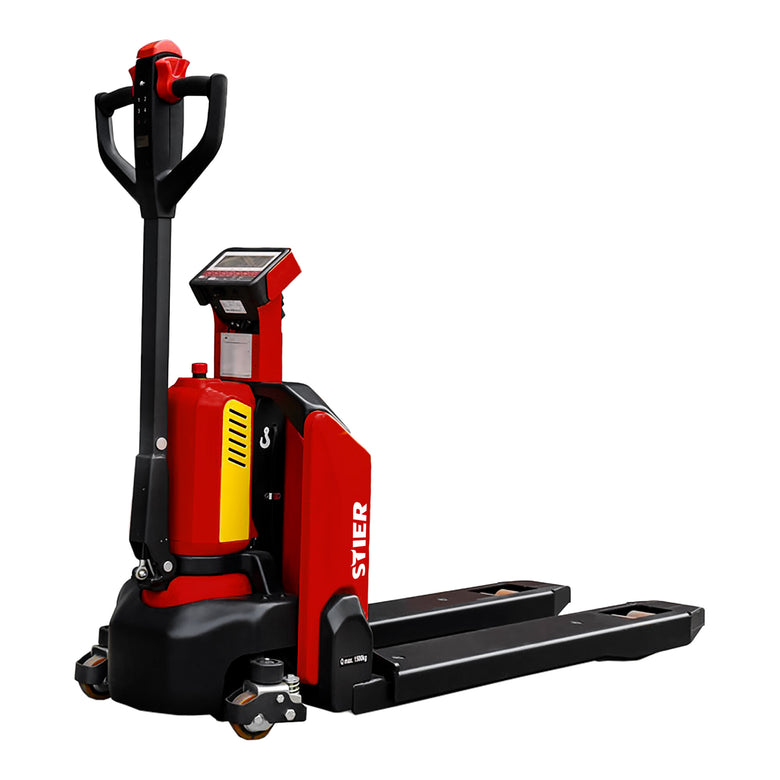

STIER electric pallet truck EZY-15 with scale, load capacity 1500 kg, fork length 1150 mm


STIER electric pallet truck EZY-15 with scale, load capacity 1500 kg, fork length 1150 mm
3.080,14 €
incl. tax2.588,36 €
excl. taxDetails
The popular EZY-15 electric pallet truck now comes with a scale and a load capacity of up to 1500 kg. With a fork length of 1150 mm, it is versatile.
Characteristics:
- Robust construction with reinforced forks ensures a long service life
- Weighing and transporting in one, thanks to the built-in scale
- Easy to operate thanks to upright drawbar and optimal turning circle for shunting
- Inlet/outlet skids and inlet rollers are standard
- The powerful battery can be easily removed and replaced if necessary
- The battery is charged with the external charger outside the pallet truck or when it is plugged in
- Easily removable and replaceable lithium battery without the typical memory effect
- Display provides an overview of the current battery discharge, operating time, driving mode and error display
- Ergonomic and rubber-coated CAN-Bus drawbar with integrated multifunction display
- Commissioning without a key possible via PIN code entry
- No exposed elements – electronics are optimally protected
- Easy maintenance of the most important components
- Easy handling on thresholds and easy crossing of obstacles thanks to the tandem load rollers
- Stable cornering thanks to side support rollers
Application:
The EZY-15 with scale is suitable for many areas thanks to its compact design and weighing function.
- E.g. on sales areas
- In stock
- In industry
- In the workshop
Scope of delivery:
- STIER electric pallet truck EZY-15 with scale, load capacity 1500 kg, fork length 1150 mm
- charger
- Li-ion battery (20 Ah, 24 V)
- Operating instructions
STIER products are developed by professionals from trade and industry and combine the highest levels of performance and ergonomics. Powerful. Durable.
Thousands of customers trust the best value for money. Experience the STIER product range on our brand page .
Main features
EAN/GTIN | 4251709643456 |
SKU | 92449033 |
Manufacturer
GPSR Name | STIER Industrial GmbH |
GPSR Address | Friedrichstrasse 224 |
GPSR City | Berlin |
GPSR Country | DE |
GPSR Zip Code | 10969 |
GPSR e-mail | info@stier.de |
Manual
Technical Sheet

Caracteristics | Values |
---|---|
Load capacity | 1500 kg |
Fork length | 1150 mm |
Fork width | 160 mm |
Drive motor power | 0.65 KW |
Lifting motor power | 0.5 kW |
without load | 4.6 |
Battery capacity | 20 Ah |
Voltage | 24 V |
Battery type | Li-ion |
Working time | 3-6 h |
Total width | 540 mm |
Lifting range | 80-115 mm |
Total length | 1530 mm |
max.) | 700 |
Caster material | Polyurethane |
Caster dimensions | 210 x 70 mm |
