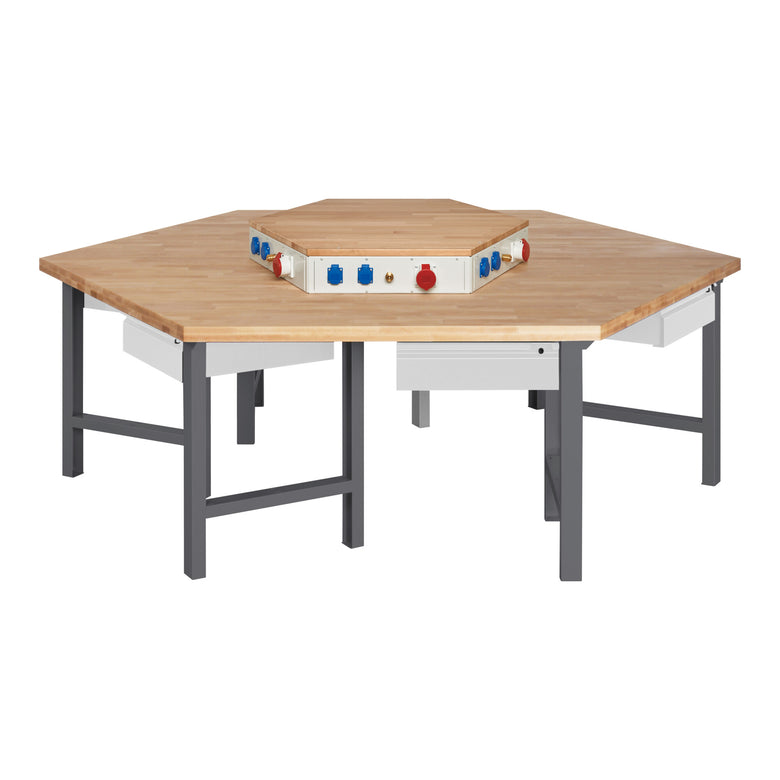

The group workbench with beech worktop from STIER offers plenty of space and is ideal for use in production and training workshops and can support a load of up to 750 kg.

Characteristics:

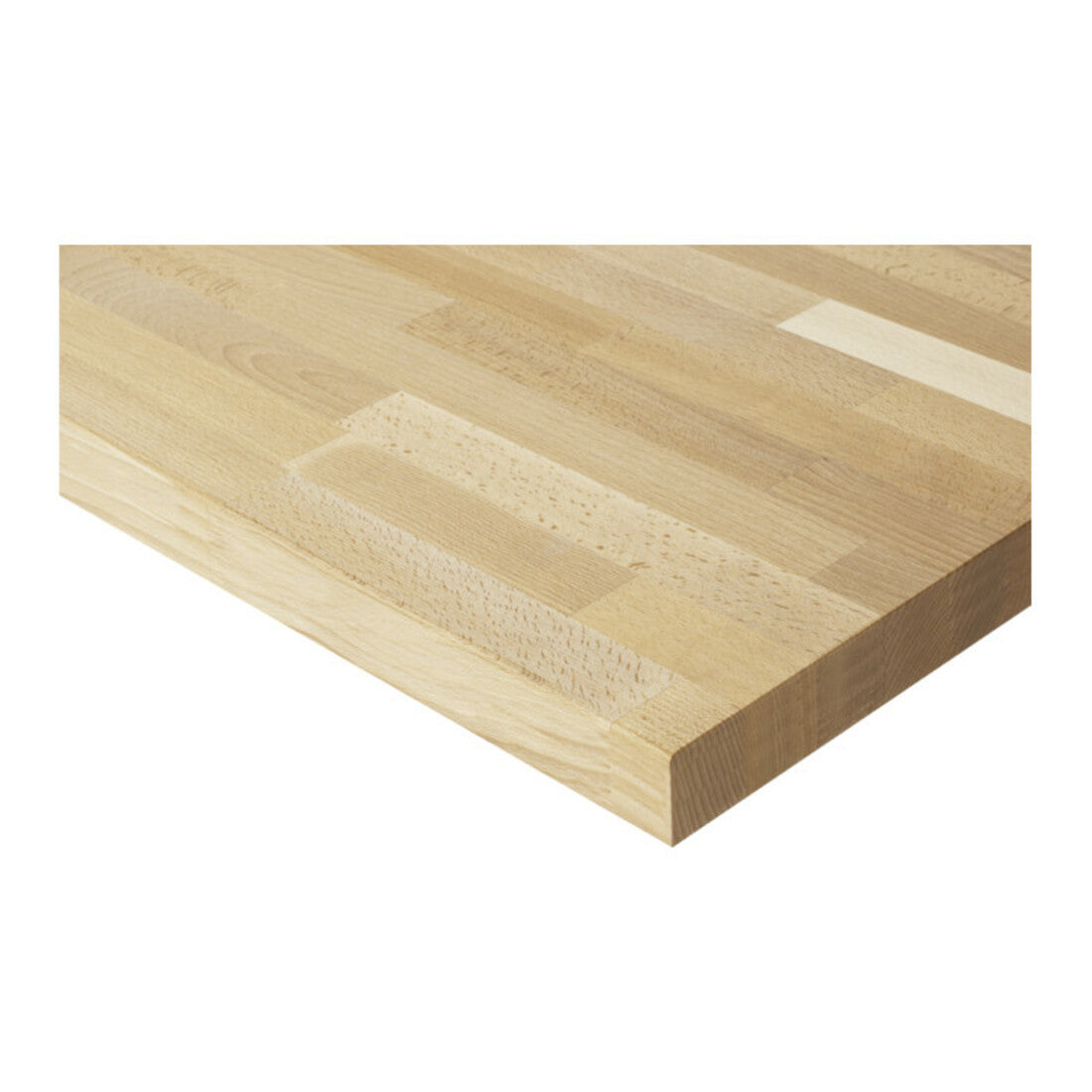

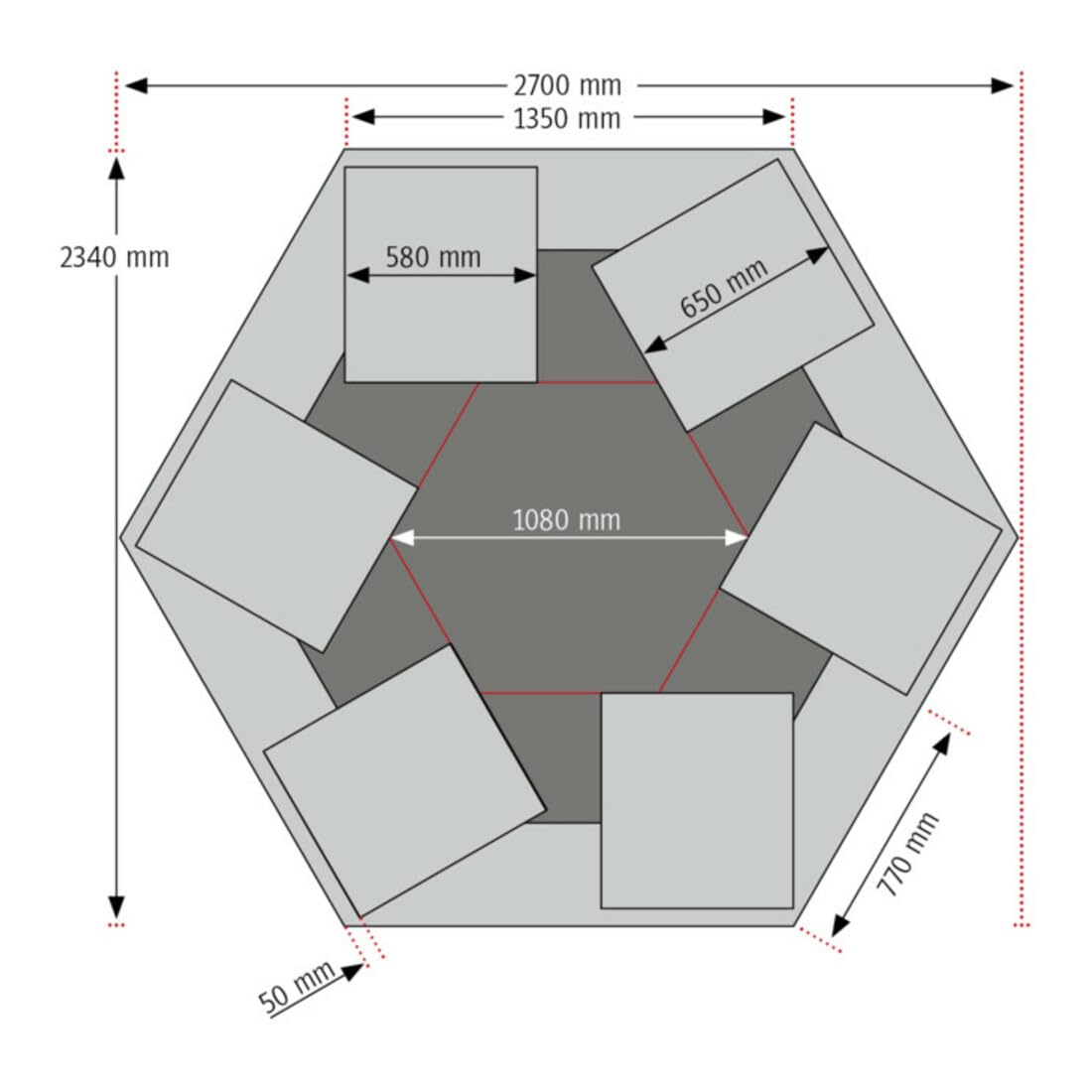

• Hexagonal worktop made of solid beech, thickness 40 mm, (2-piece, including panel-to-panel connectors and fittings), edge length 1350 mm, corner dimensions 2700 x 2340 mm
• Workbench with power attachment, equipment per workstation: 1 x module with three-phase socket with hinged lid 400 V / 16 A, 1 x module with compressed air quick coupling G 1/4", NW 7.2 brass, 1 x module with 2 x sockets with hinged lid 230 V / 16 A
• Energy attachment height 145mm, cover plate made of solid beech, thickness 25mm
• Completely wired and grounded, including connection cable (includes 5-pin connection cable with plug) and preparation for supply of air and data cable
• Surface protection with environmentally friendly linseed oil
• Worktop is resilient, pressure-resistant, durable, natural, robust, beautiful, wear-resistant and reusable
• Beech from sustainable and regional forestry
• Welded frame environmentally friendly powder-coated
• Frame feet with integrated height adjustment via hole pattern (25 mm) and floor anchoring option via perforated foot plates
• Working height adjustable from 790-1140 mm
• 6x 1 drawer with 150 mm height and 50 kg load capacity
• Drawers with roller bearings 90% extension
• Central locking with 2 keys
• Maximum surface load 750 kg
• Delivered disassembled for easy assembly
• According to the standards: DIN VDE 0113-1 - Final test according to the Machinery Directive; DIN EN 60529 (VDE 0470-1) - Degrees of protection provided by enclosures (IP code) - IP40; DIN EN 61140 (VDE 0140-1) - Protection class I
• Built-in models according to the directives: 2001-95-EC - General Product Safety; 2006-42-EC - Machinery Directive; 2011-65-EU - Restriction of the use of hazardous substances in electrical and electronic equipment; 2011-35-EU - Provision of electrical equipment within certain voltage limits
• Please note that the power attachment must not be opened and each side of the power attachment is subject to a power limitation of max. 16 A.

Application:

• The group workbench is ideal for everyday use thanks to its high-quality workmanship and can withstand loads of up to 750 kg thanks to its sturdy construction

Scope of delivery:

• STIER group workbench with 6x1 drawer and energy attachment WxDxH 2700x2340x790-1140 mm
