NOTE: Please note the instructions for accepting goods.

The group workbench made of solid beech from STIER offers plenty of space and is ideal for use in production and training workshops and can support a load of up to 1000 kg.

Characteristics:

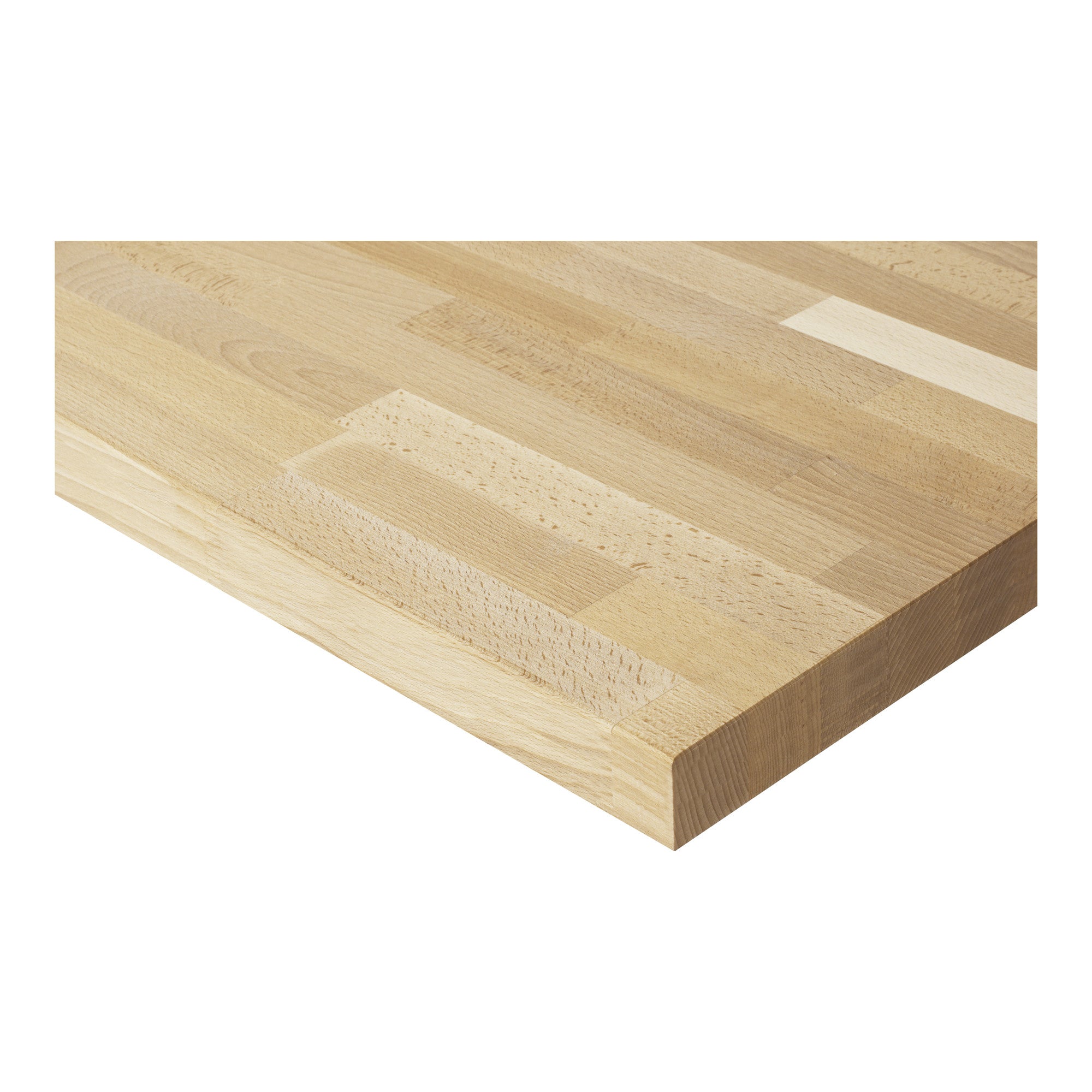

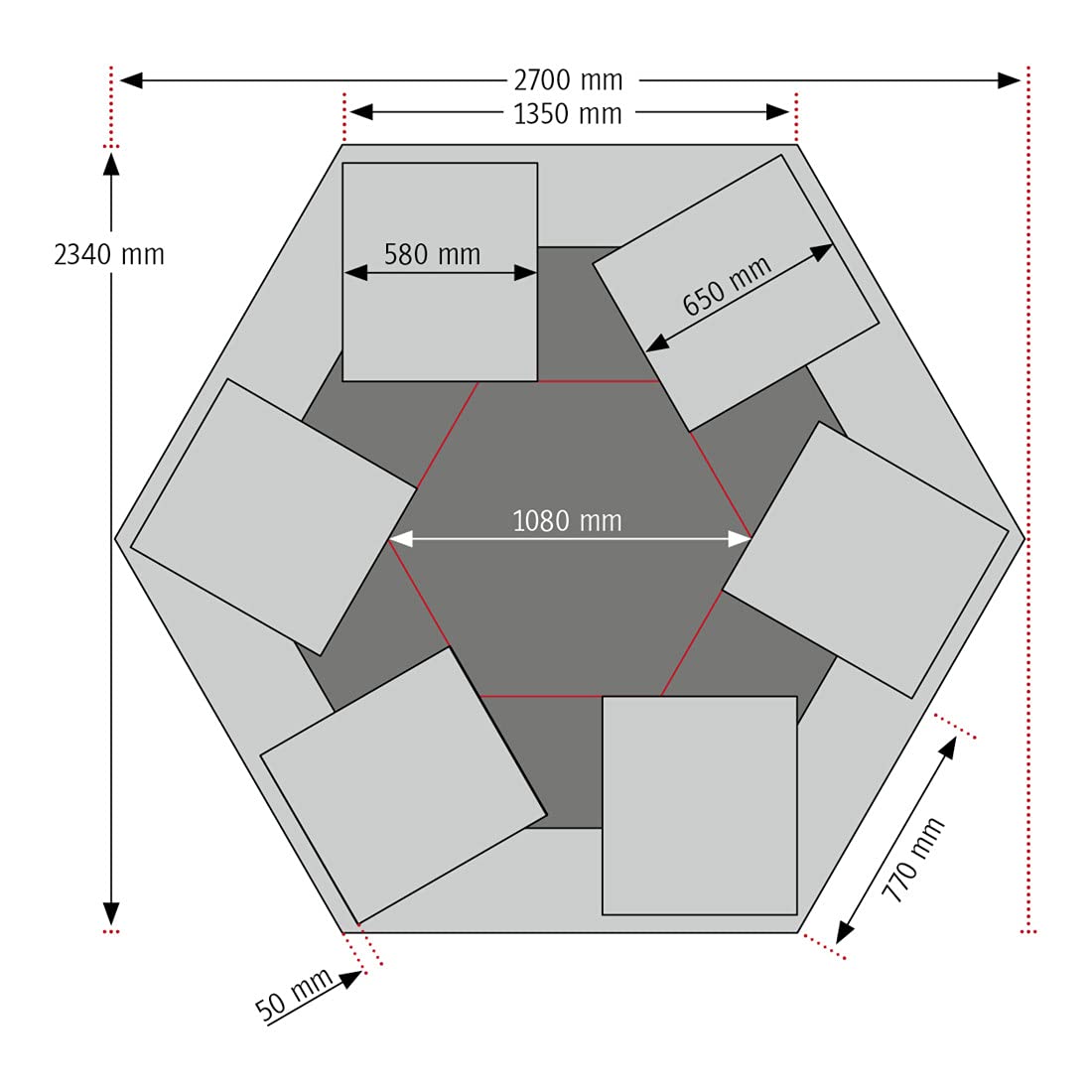

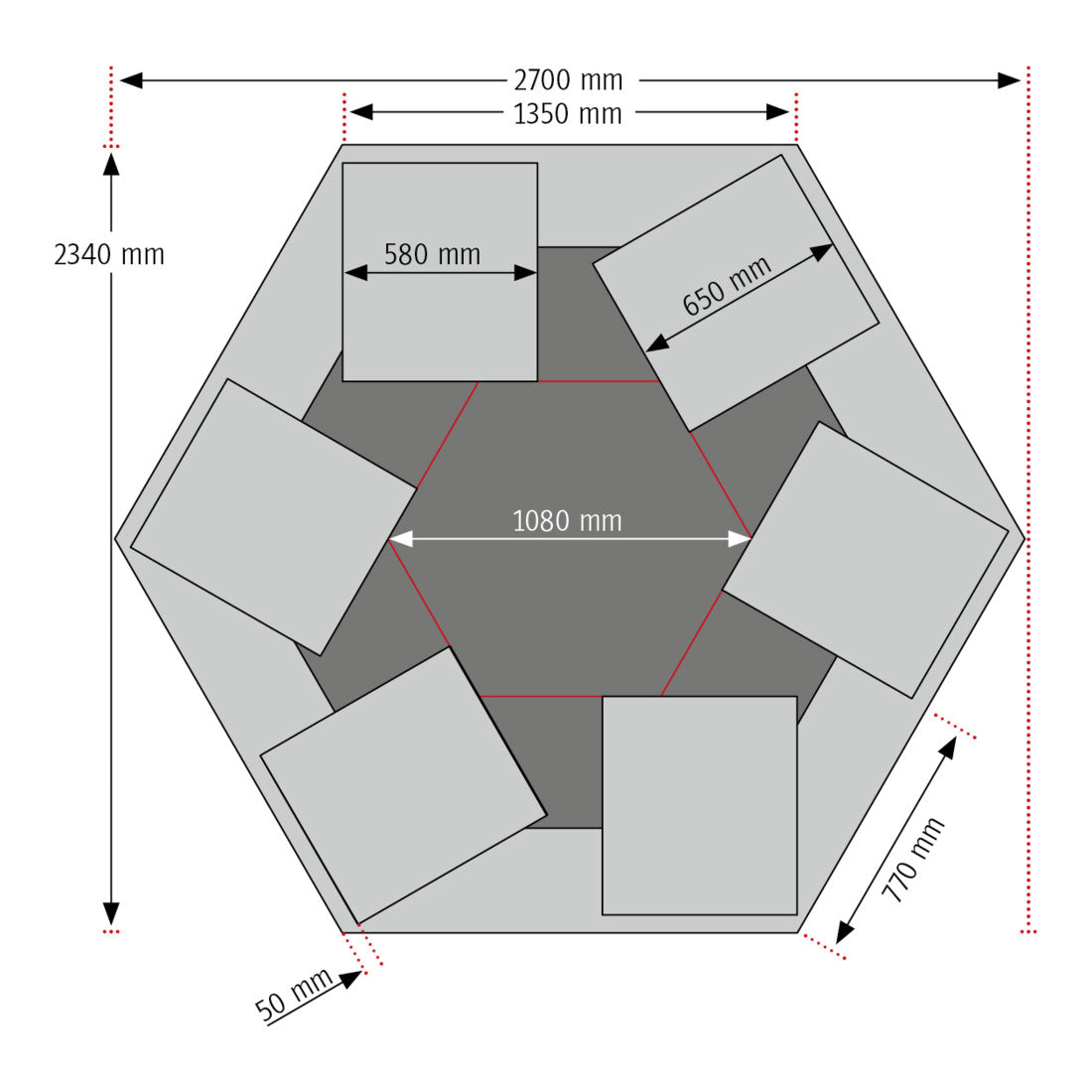

• Hexagonal worktop made of solid beech, thickness 40 mm, (2-piece, including panel-to-panel connectors and fittings), edge length 1350 mm, corner dimensions 2700 x 2340 mm
• Workbench with power attachment, equipment per workstation: 1 x module with three-phase socket with hinged lid 400 V / 16 A, 1 x module with compressed air quick coupling G 1/4", NW 7.2 brass, 1 x module with 2 x sockets with hinged lid 230 V / 16 A
• Energy attachment height 145mm, cover plate made of solid beech, thickness 25mm
• Completely wired and grounded, including connection cable (includes 5-pin connection cable with plug) and preparation for air and data line supply
• Surface protection with environmentally friendly linseed oil
• Worktop is resilient, pressure-resistant, durable, natural, robust, beautiful, wear-resistant and reusable
• Beech from sustainable and regional forestry
• 6x 5 drawers: 2x 120 mm height, 2x 150 mm height, 1x 180 mm height
• Drawers with 100 kg load capacity, roller bearing 90% extension and self-closing and non-return device
• Central locking with 2 keys
• Surface load max. 1000 kg
• Delivered disassembled for easy assembly
• According to the standards: DIN VDE 0113-1 - Final test according to the Machinery Directive; DIN EN 60529 (VDE 0470-1) - Degrees of protection provided by enclosures (IP code) - IP40; DIN EN 61140 (VDE 0140-1) - Protection class I
• Built-in models according to the directives: 2001-95-EC - General Product Safety; 2006-42-EC - Machinery Directive; 2011-65-EU - Restriction of the use of hazardous substances in electrical and electronic equipment; 2011-35-EU - Provision of electrical equipment within certain voltage limits
• Please note that the power attachment must not be opened and each side of the power attachment is subject to a power limitation of max. 16 A.
• Areas of application:

• The group workbench is ideal for everyday use thanks to its high-quality workmanship and can withstand loads of up to 1000 kg thanks to its sturdy construction

Scope of delivery:

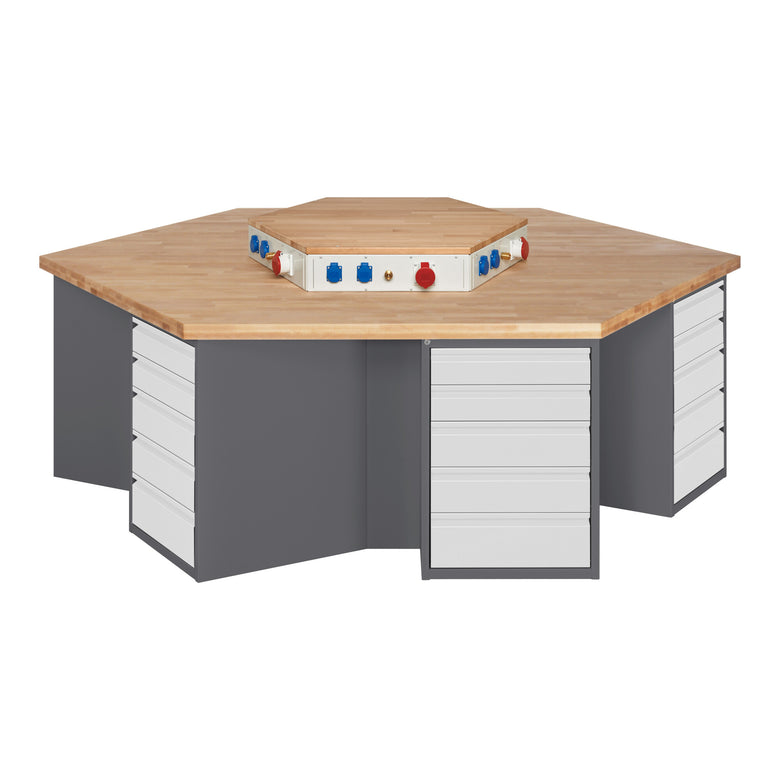

• STIER group workbench with 6x5 drawers energy attachment WxDxH 2700x2340x790-1140 mm
