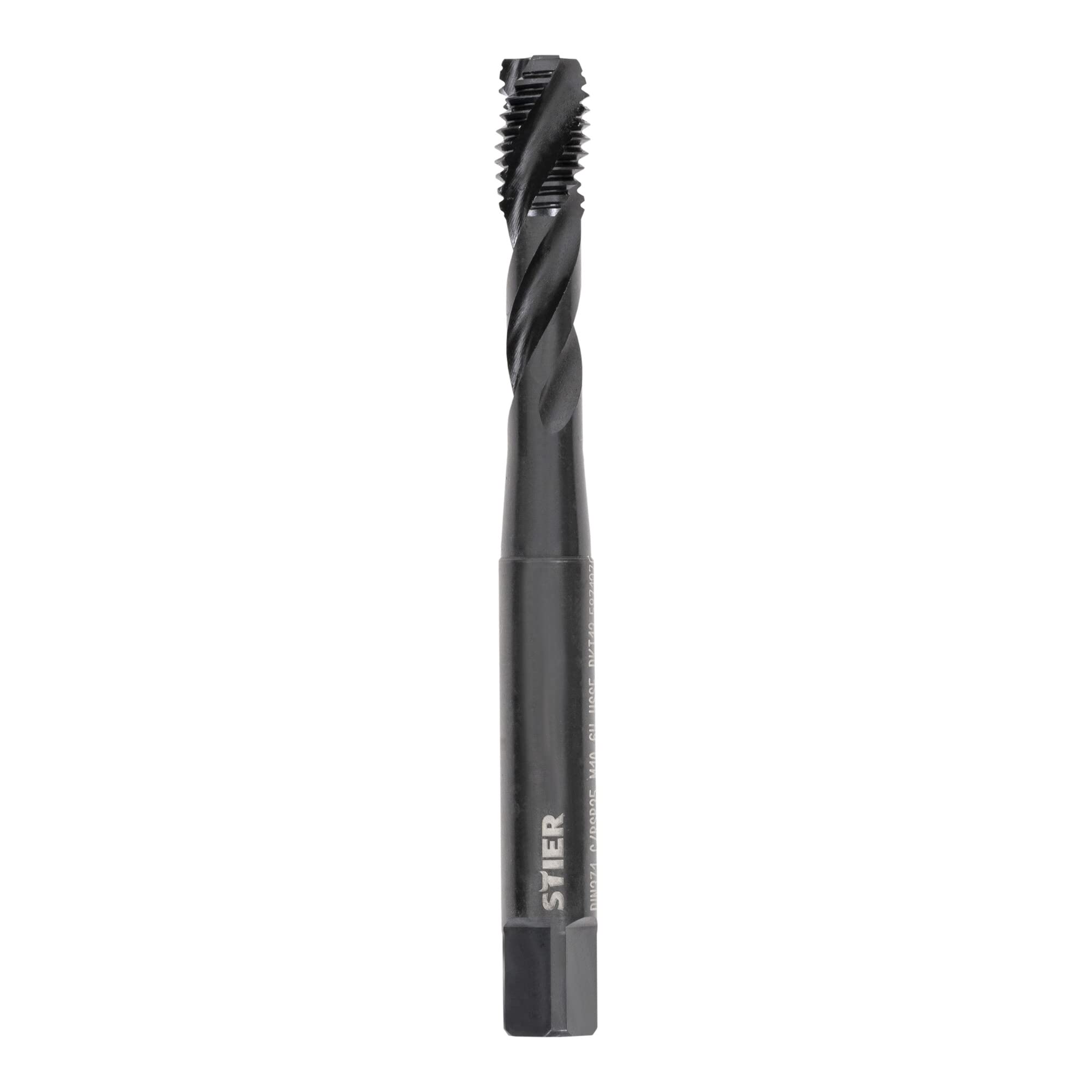

Vaporized STIER machine tap M10 according to DIN 371 HSSE / HSS Co5 for producing internal threads according to DIN 13 in stainless steels.

Characteristics:

• Nitrided and vaporized surface to avoid cold welding, which can lead to damage to the thread
• Made of HSSE steel with 5% cobalt content
• Very suitable for stainless steels up to 1000 N/mm² such as V2A and V4A
• Max. thread depth: 2.5 x d (d = nominal diameter)
• Form C with right-hand spiral RSP35°
• For standard internal threads, in blind holes, suitable for various types of steel
• Reduced diameter of the rear guide part
• Less friction in the finished thread
• Completely ground from solid
• The taps up to M8 have a point due to manufacturing. This can be ground down if necessary.
• Ground square according to DIN 10
• Laser marking: Labeling according to DIN 2197

Characteristics:

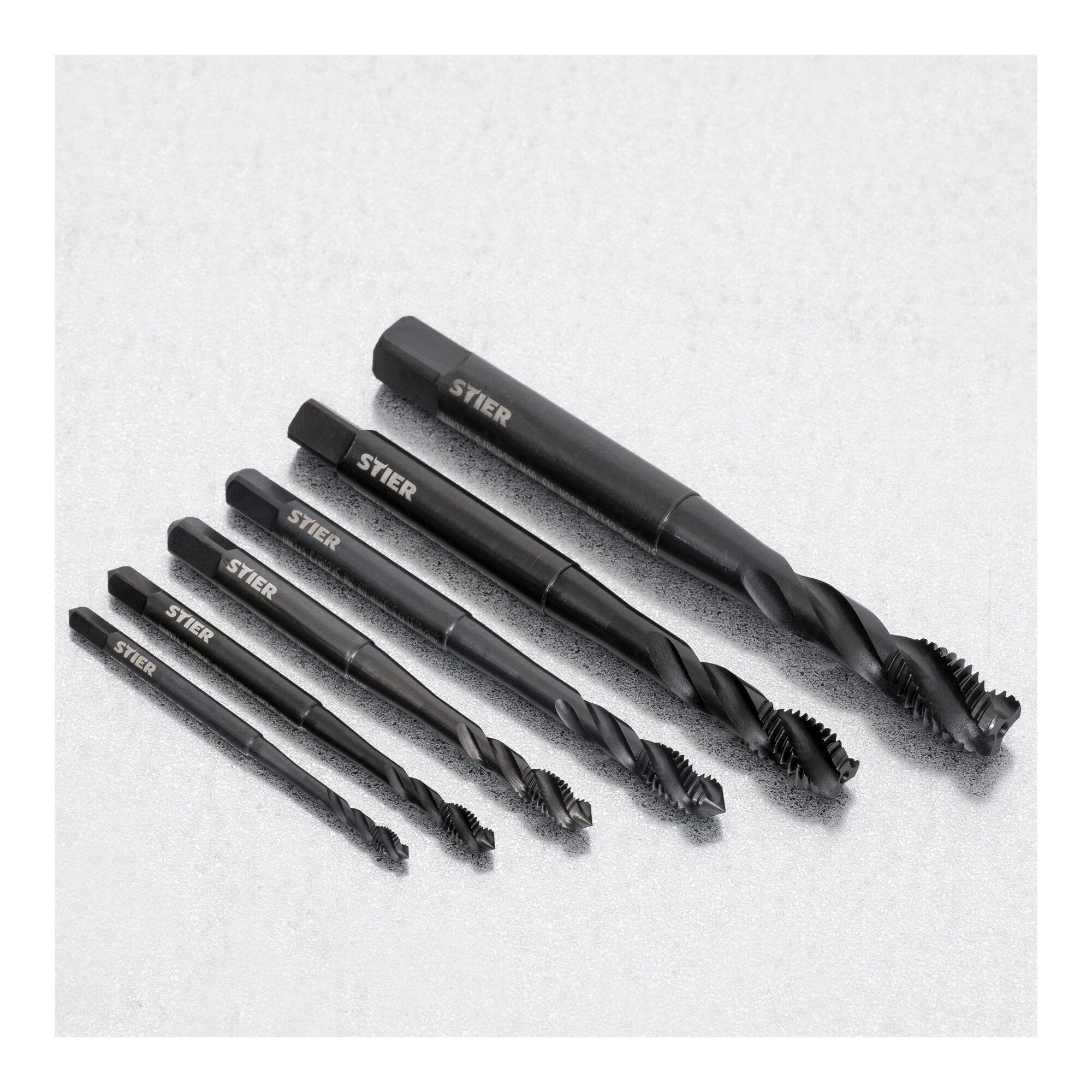

• Machine taps DIN 371 M3 - M10 with reinforced shank (the shank is larger than the nominal size)

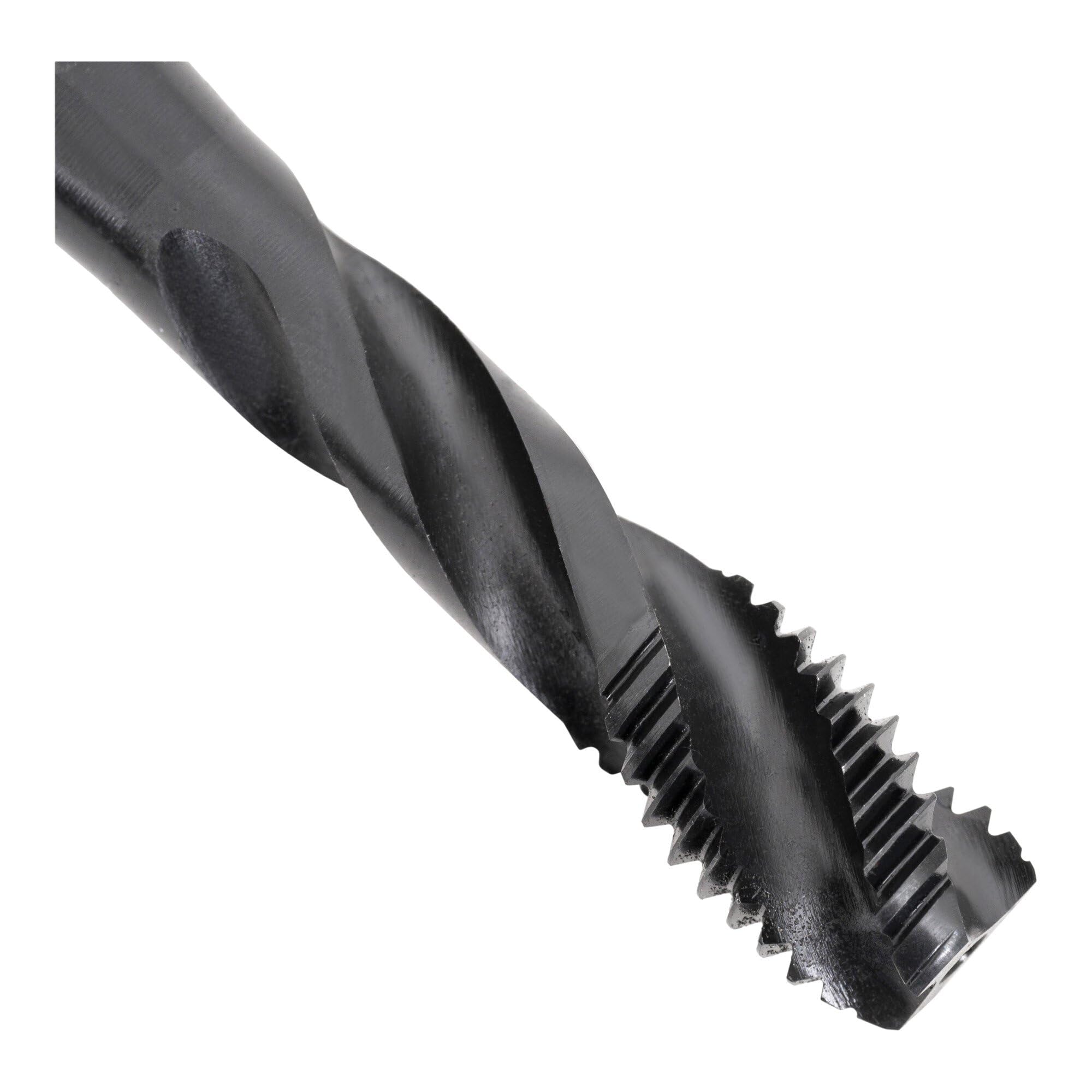

• Spiral cut ensures that the chip is broken and exits downwards from the hole

Areas of application:

• For threads in blind holes (SALO)
• Very suitable for stainless steels up to 1000 N/mm² such as V2A and V4A
• Well suited for free-cutting steels up to 800 N/mm², grey cast iron
