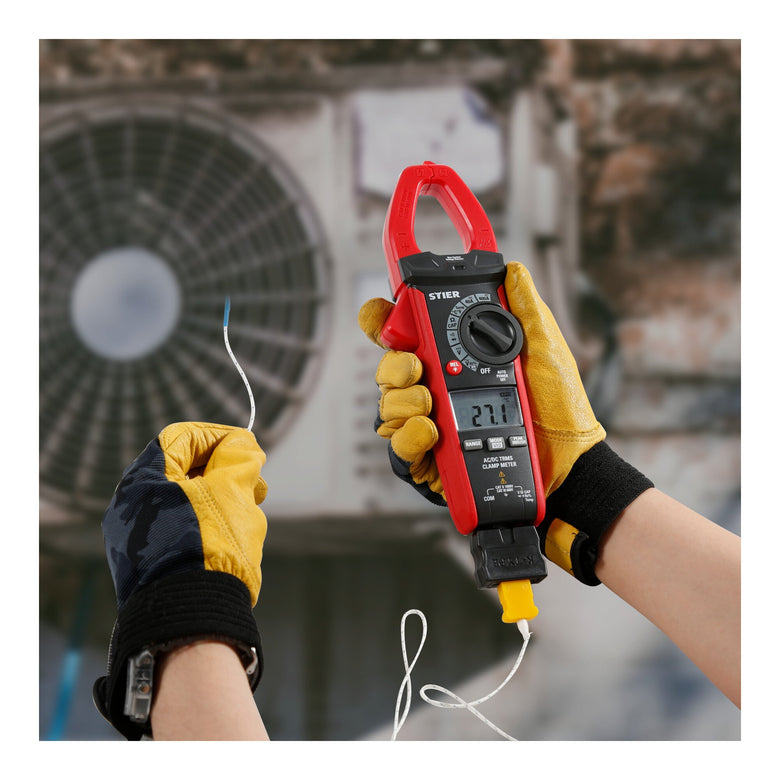

STIER Digital Current Clamp AC/DC 1000V 400A 40MΩ 100kHz high accuracy achieved
STIER Digital Current Clamp AC/DC 1000V 400A 40MΩ 100kHz high accuracy achieved
95,03 €
incl. tax79,86 €
excl. taxExpress: 1–2 Werktage
Details

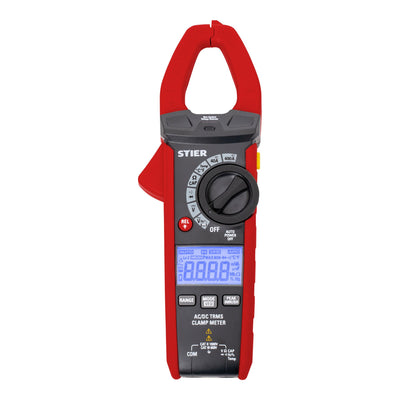

The STIER digital current clamp is ideal for safely measuring alternating and direct current.
Characteristics:
- Safe AC and DC current measurement
- Resistance, capacitance, frequency and temperature measurements
- Diode test and continuity test
- High accuracy

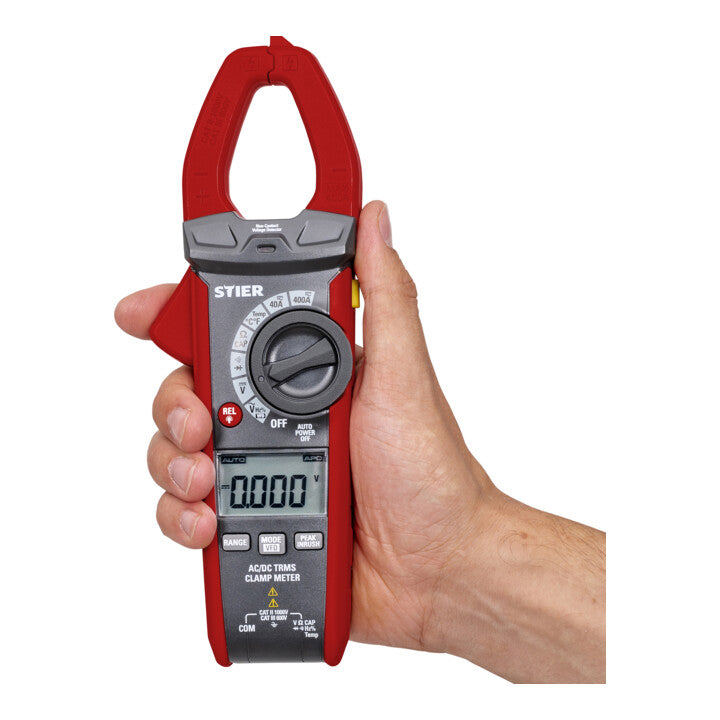

- Modern plastic housing and clamp design for easy handling and testing in tight spaces
- Illuminated display with backlight, flashlight and practical data hold function
- Low battery and over-range indication
Application:

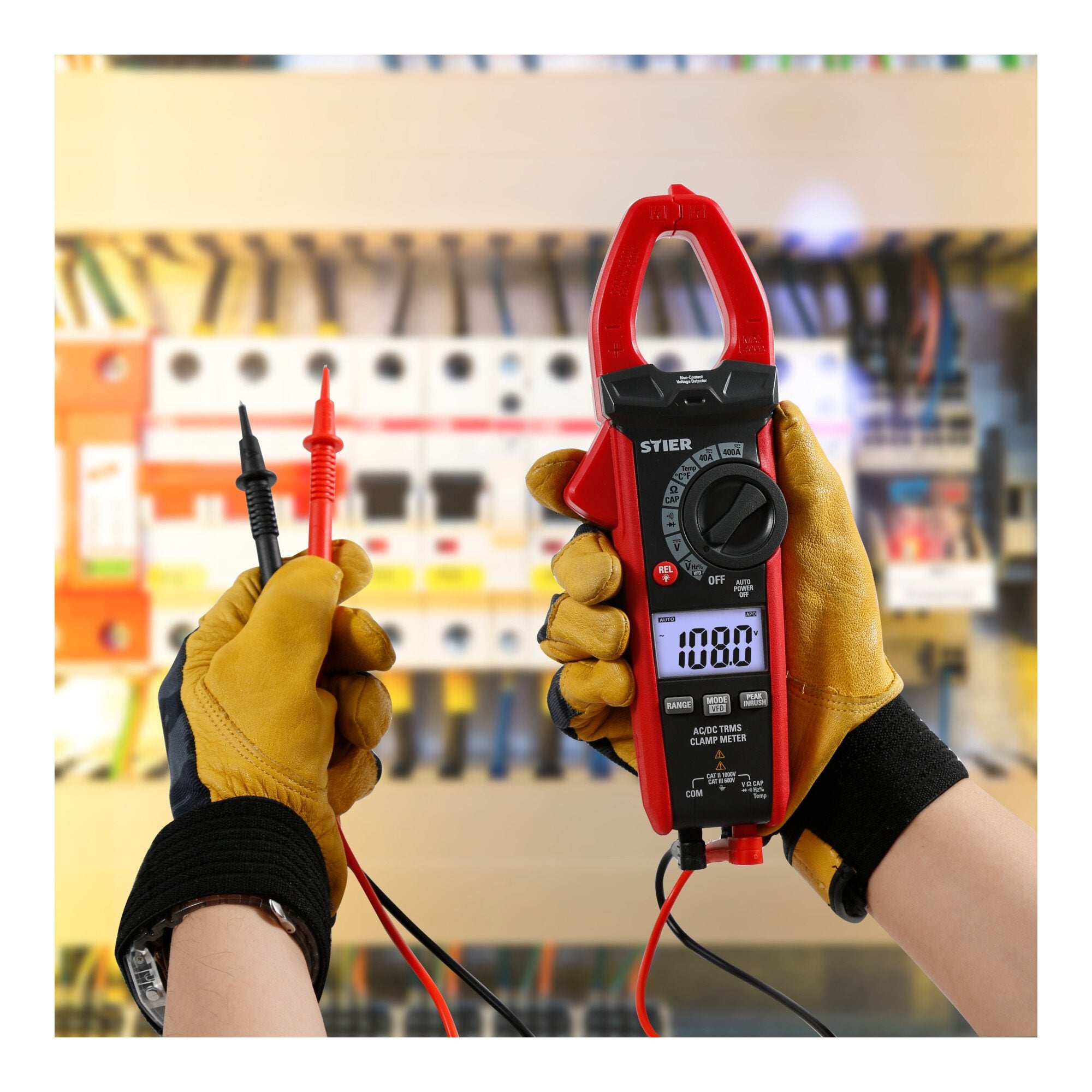

- For indirect measurement of electrical current without breaking the circuit

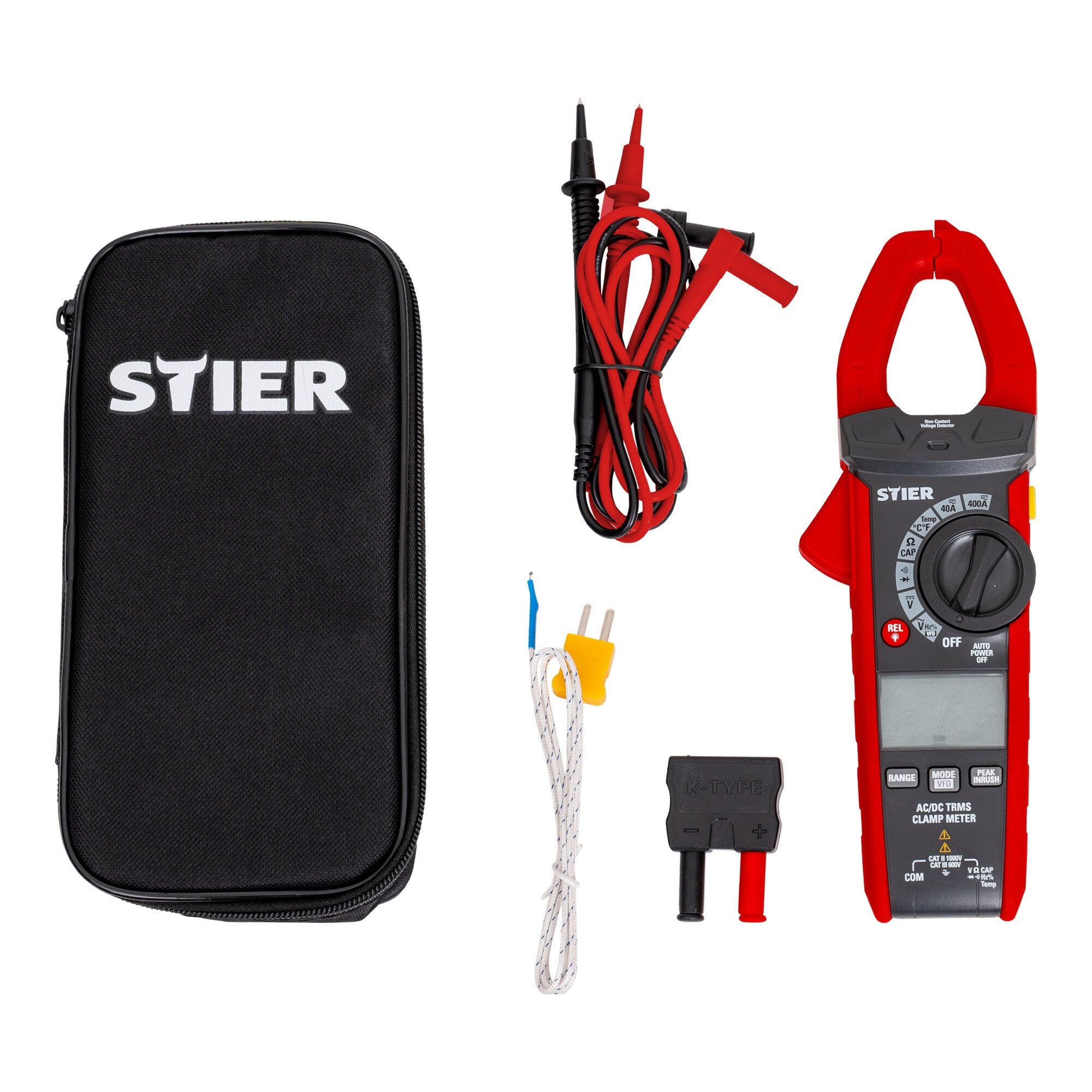

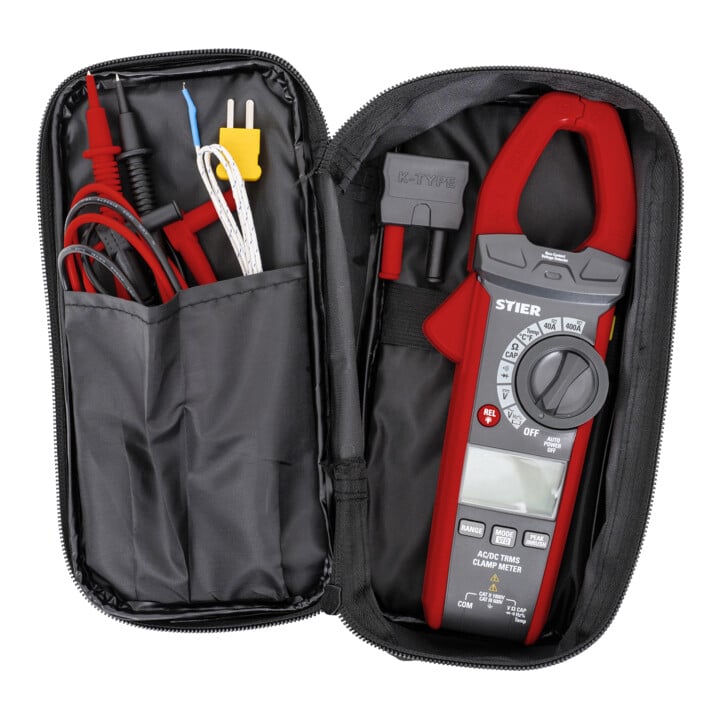

Scope of delivery:
- STIER Digital Current Clamp
- 3 x 1.5 V AAA batteries
- Bag

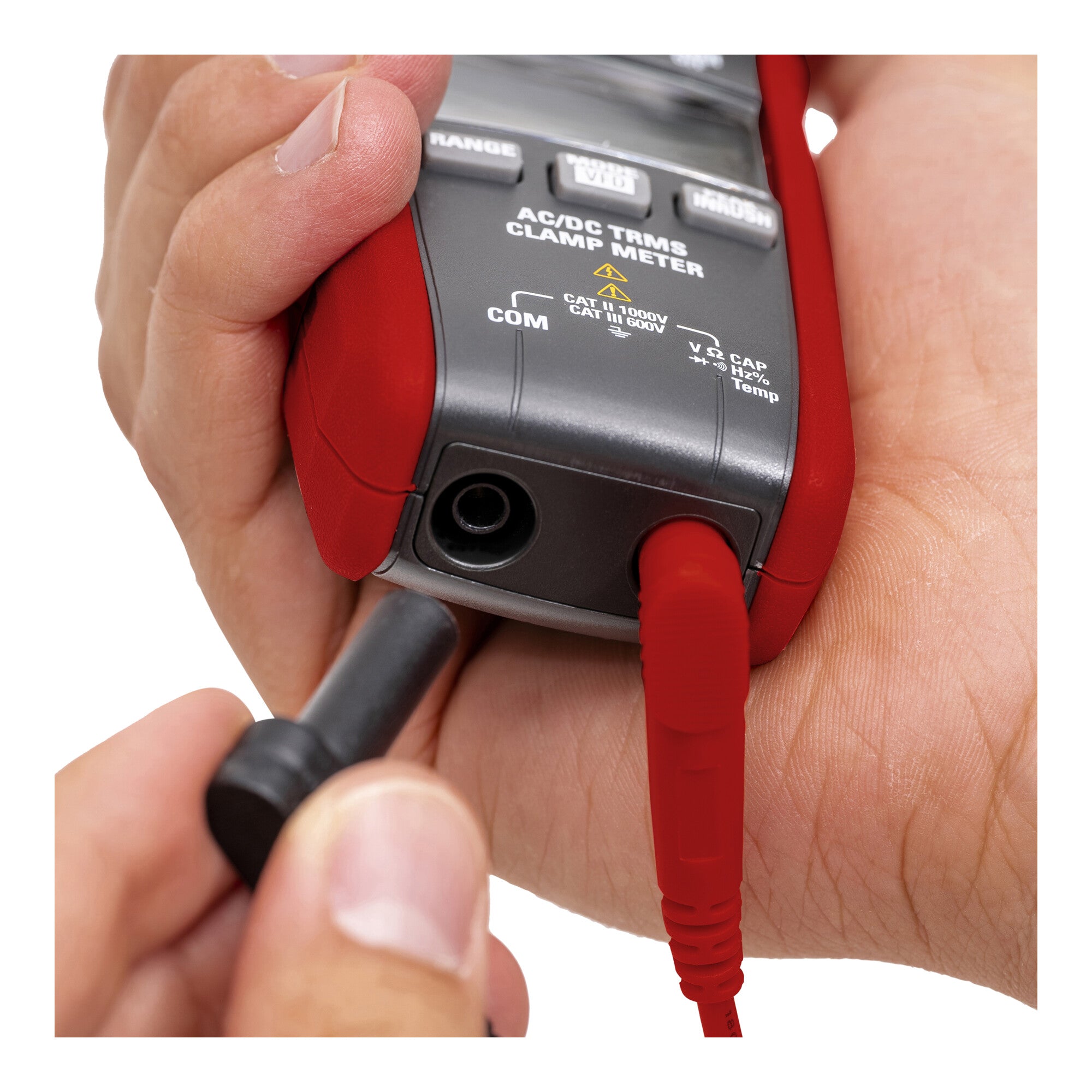

- test cable
- temperature sensor
- Operating instructions
STIER products are developed by professionals from trade and industry and combine the highest levels of performance and ergonomics. Powerful. Durable.
Thousands of customers trust the best value for money. Experience the STIER product range on our brand page .
Main features
| EAN/GTIN | 4251709626541 |
| SKU | 89879995 |
Manufacturer
| GPSR Name | STIER Industrial GmbH |
| GPSR Address | Friedrichstrasse 224 |
| GPSR City | Berlin |
| GPSR Country | DE |
| GPSR Zip Code | 10969 |
| GPSR e-mail | info@stier.de |
Manual
Technical Sheet
| Caracteristics | Values |
|---|---|
| Display | 3-3 |
| 4 digits (Display | 4000), backlit LCD display |
| Measuring rate | 3 readings per second, nominal |
| Temperature sensor | Type K thermocouple |
| Input impedance | 10 M (AAC and VAC) |
| AC resonance | True RMS (AAC and VAC) |
| ACV bandwidth | 2 KHZ |
| Operating temperature | 5°C to 40°C |
| Operating altitude | Maximum 2000 meters |
| Battery | 3*1.5 V AAA |
| Automatic shutdown | After approx. 15 minutes |
| Overvoltage category | CAT III 600 V |
| Continuity test | 100 mF |
| Frequency | ACV 100kHz |
| Resistance | 40MΩ |
| AC | 1mV to 1000V |
| AC | 10mA to 400 A |
| Maximum clamp opening | Approx. 30 mm |
| Dimensions of pliers (L x W x H) | 225 x 75 x 35 mm |
| Weight (pliers) | 300 g |
| Weight (entire set) | 484 g |
| Dimensions of entire set (L x W x H) | 240 x 120 x 60 mm |
